This is a Brand-New Premium Quality Major Engine Overhaul Kit.  It comes with a Full Manufacturer’s Warranty.  It is for rebuilding the original D1105 Kubota Engine's.

Fits Engine Models:

• KUBOTA D1105
• KUBOTA D1105-BB
• KUBOTA D1105-BG2
• KUBOTA D1105-BBS


Fits Equipment Models:

• Blaw Knox® - ASPHALT PAVER: 580M
• Ditch Witch® - SKID STEER: XT850
• Ditch Witch® - TRENCHER: HT25
• JLG®  - ARTICULATING BOOM LIFT: 340AJ
• Bobcat® - SKID STEER: 553
• Genie® - WHEELED SCISSOR LIFT: GS-4069 RT
• Genie® - WHEELED SCISSOR LIFT: GS-3369 RT
• Genie® - WHEELED SCISSOR LIFT: GS-2669 RT
• Sinoboom® - CRAWLER TELESCOPIC WORK PLATFORM: GTSZ30J
• Hitachi® - EXCAVATOR: EX12-2
• Hitachi® - EXCAVATOR: EX15-2
• Hitachi® - EXCAVATOR: EX22
• Hitachi® - EXCAVATOR: EX25.2
• Hyundai® - SKIK STEER: HSL275T
• Manitou® - FORKLIFT: TMT 45
• Manitou® - FORKLIFT: TMT45FL
• Takeuchi® - MINI EXCAVATOR: TB 020
• Vermeer® - FORKLIFT: S600TX
• Vermeer® - FORKLIFT: S600T

• Kubota® - TRACTOR: B2400D
• Kubota® - TRACTOR: B2400E
• Kubota® - TRACTOR: B2400HSD
• Kubota® - TRACTOR: B2400HSE
• Kubota® - TRACTOR: B2410HSD
• Kubota® - TRACTOR: B2410HSDB
• Kubota® - TRACTOR: B2410HSE
• Kubota® - TRACTOR: B7610HSD
• Kubota® - TRACTOR: B2630HSD
• Kubota® - TRACTOR: B2620HSD
• Kubota® - COMPACT EXCAVATOR: U25S
• Kubota® - LOADER BACKHOE: B26
• Kubota® - LAWN MOWERS: F2400
• Kubota® - LAWN MOWERS: FZ2400
• Kubota® - LAWN MOWERS: F2560
• Kubota® - LAWN MOWERS: F2560E
• Kubota® - LAWN MOWERS: ZD28
• Kubota® - LAWN MOWERS: ZD28F
• Kubota® - LAWN MOWERS: F2680E
• Kubota® - LAWN MOWERS: F2560E
• Kubota® - LAWN MOWERS: F2880F
• Kubota® - LAWN MOWERS: F2560E
• Kubota® - UTILITY VEHICLE: RTV1100CR (2007 - 2009)
• Kubota® - UTILITY VEHICLE: RTV1100CR9 (2009 -2011)
• Kubota® - UTILITY VEHICLE: RTV1100CRX
• Kubota® - UTILITY VEHICLE: RTV1100CW (2007 - 2009)
• Kubota® - UTILITY VEHICLE: RTV1100CW9 (2009 - 2011)
• Kubota® - UTILITY VEHICLE: RTV1100CWX
• Kubota® - UTILITY VEHICLE: RTV1140CPX
• Kubota® - UTILITY VEHICLE: RTV1140CPXR

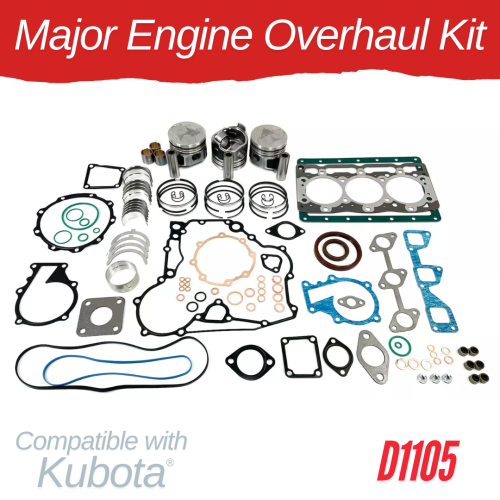

Included in this Kit:

• 3 x Piston and Rings Kit (with 4mm oil ring. if you have a 2mm oil ring please contact us)
• 1 x Main Bearing Set
• 1 x Front Crank Bushing
• 3 x Con Rod Bearing
• 1 x Thrust Washer
• 1 x Front Seal
• 1 x Rear Seal
• 1 x Top Gasket Set (Composite Head Gasket)
• 1 x Bottom Gasket Set
• 3 x Bushing Con Rod
• 1 x Cylinder Head Gasket (Composite Head Gasket)

Overhaul kit comes with composite head gasket. If you require a MLS (Multi-Layer Steel) head gasket please contact us.

Specifications:

• 3 Cyl - Naturally Aspirated
• Indirect Injection
• Screw-in fuel injector
• Bore: 3.07 in / 78mm
• Stroke: 3.09 in / 78.4mm
• Weight: 30 lbs
