MAJOR ENGINE OVERHAUL KIT FOR JOHN DEERE 6.404D LATE 4040 4230 6600 6602 7700
This is a Brand New Premium Quality Major Engine Overhaul Kit. It comes with a Full Manufacturers Warranty. It is for rebuilding the original John Deere 6.404D - (LATE SERIAL NUMBER RANGE) Series Diesel Engine in the following equipment. Please check Engine Serial Numbers Below and your BLOCK CASTING NUMBER :
FITS Engine Serial Number After : 335846
John Deere COMBINE : 6600 (After S/N # 156500 - Block # R49470, R49650, R59850, R72128 or R87558)
John Deere COMBINE : 6602 (After S/N # 1500 - Block # R49470, R49650, R59850, R72128 or R87558)
John Deere COMBINE : 7700 (After S/N # 8000 - Block # R49470, R49650, R59850, R72128 or R87558)
John Deere TRACTOR : 4040 (Block # R49470, R49650, R59850, R72128 or R87558)
John Deere TRACTOR : 4230 (Block # R49470, R49650, R59850, R72128 or R87558)

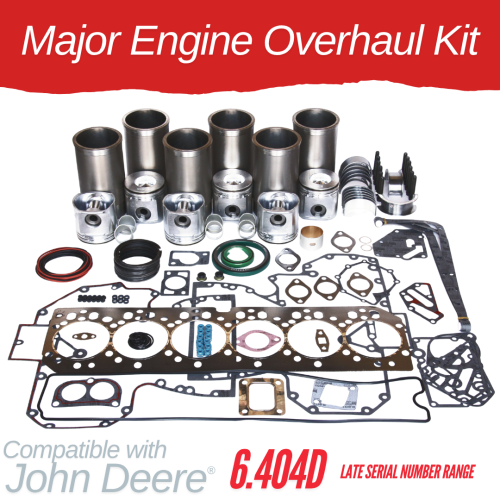

Included in this Kit :

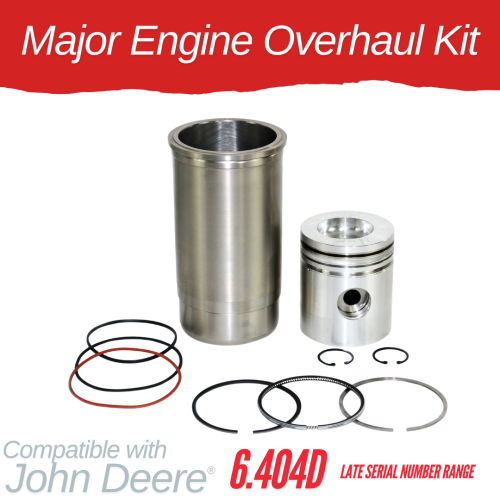

- 6 x Piston, Rings, Liner Kit (1.50" or 38mm Wrist Pin Diameter)
- 1 x Main Bearing Set w/ Thrust Washer Set - STD
- 1 x Connecting Rod Bearing Set - STD
- 1 x Front Engine Seal
- 1 x Rear Engine Seal
- 6 x Connecting Rod Bushing
- 12 x Connecting Rod Bolt
- 4 x Camshaft Bearing
- 1 x Full Engine Gasket Set
Kit Weight : 105 lbs
Pictures are GENERIC
Engine Specifications :
* 6 Cyl. - Diesel - Natural Aspiration
* Bore : 4.25" (108mm)
* Wrist Pin Diameter : 1.50" (38mm)
* Block Casting # R49470, R49650, R59850, R72128 or R87558
* THERE IS HIGH COMPRESSION UPGRADE KIT AVAILABLE FOR EASIER STARTING - PLEASE ENQUIRE *
*** PLEASE BE ADVISED this kit comes with standard bearings unless you advise us you require another size ***
| Applications | |
| Agricultural Tractor Models | 4040, 4230 |
| Industrial Tractor Models | 6600, 6602, 7700 |
| OEM Reference | JD6.404DL-M |
