MAJOR ENGINE OVERHAUL KIT FOR JOHN DEERE 4.219 LATE - 2030 2120 440A 440B 410
Product Code: CTPD JD4.219L-M
Select your options below to see availability
This is a Brand New Premium Quality Major Engine Overhaul Kit. It comes with a Full Manufacturers Warranty. It is for rebuilding the LATE (O-Rings on Block, 1.375" or 35mm Wrist Pin) original John Deere 4.219 Diesel Engine in the following equipment. Please check Engine Serial Numbers Below AND PLEASE CONFIRM that you do have the O-RINGS on BLOCK seals and 1.375" or 35mm Wrist Pin Diameter :
John Deere BACKHOE : 410 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere COMBINE : 3300 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere COMBINE : 4400 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere COTTON PICKER : 499 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere CRAWLER : 450B (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere FORKLIFT : 480A (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere INDUSTRIAL TRACTOR : 401 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere INDUSTRIAL TRACTOR : 401A (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere SKIDDER : 440A (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere SKIDDER : 440B (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere TRACTOR : 2030 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere TRACTOR : 2120 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **
John Deere WINDROWER : 2270 (Engine S/N After : 275484) ** w/ O-Ring on Block Seal **

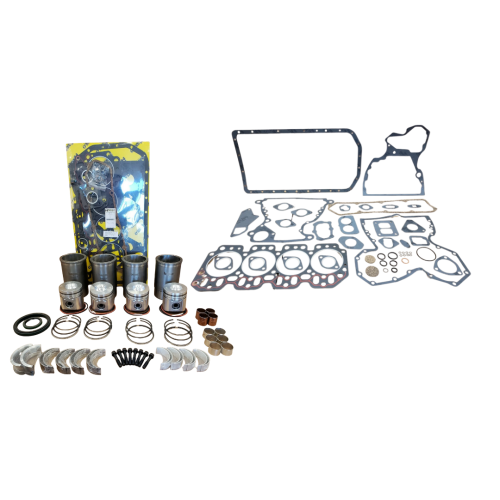

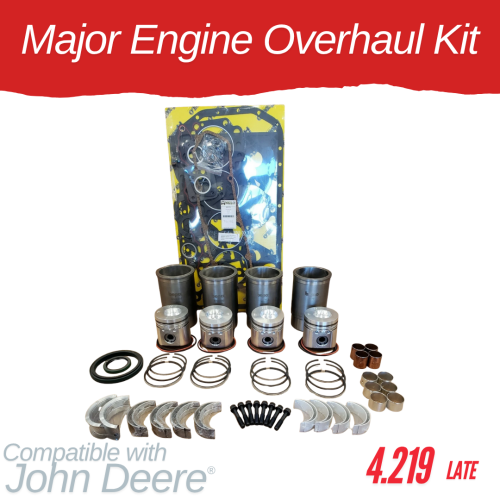

Included in this Kit :
- 4 x Piston, Rings, Liner Kit (O-Rings on Block, w/ 1.375" or 35mm Wrist Pin Diameter)
- 1 x Main Bearing Set w/ Thrust Washer Set
- 1 x Connecting Rod Bearing Set
- 1 x Front Engine Seal
- 1 x Rear Engine Seal
- 8 x Connecting Rod Bolt
- 4 x Connecting Rod Bushing
- 6 x Balancer Shaft Bushing

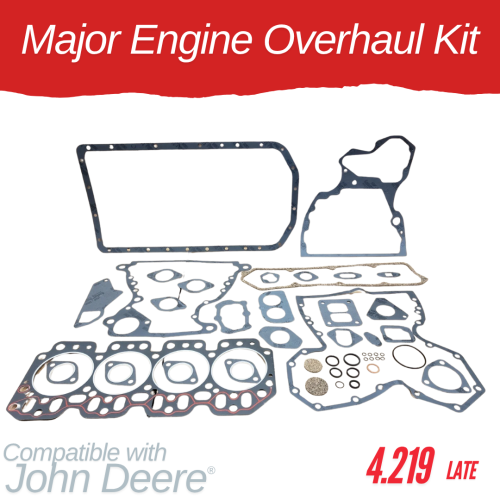

- 1 x Complete Overhaul Gasket Set
Weight : 60 lbs
Engine Specifications :
* 4 Cyl. - Diesel
* Bore : 4.02" (102mm)
* Wrist Pin Diameter : 1.375" (35mm)
* O-Ring Seals are on the Block
* Connecting Rod Casting Number : R51727 and R80034
| Applications | |
| Agricultural Tractor Models | 3300, 4400, 499, 2030, 2120, 2270 |
| Industrial Tractor Models | 410, 450B, 480A, 401, 401A, 440A, 440B |
| OEM Reference | JD4.219L |
