INFRAME ENGINE OVERHAUL KIT FOR JOHN DEERE 4.270 - LATE JD500A JD500B 500C 3020
This is a Brand New Premium Quality In-Frame Engine Overhaul Kit. It comes with a Full Manufacturers Warranty. It is for rebuilding the original John Deere 4.270 (LATE) Series Diesel Engine in the following equipment. Please check Engine Serial Numbers Below and your BLOCK CASTING NUMBER :
John Deere BACKHOE : JD500A (After ESN # 123113 - Block # R40700, R47520, R48430, R50610 or R72127)
John Deere BACKHOE : JD500B (Block # R40700, R47520, R48430, R50610 or R72127)
John Deere BACKHOE : 500C (Block # R40700, R47520, R48430, R50610 or R72127)
John Deere BACKHOE : 510 (Block # R40700, R47520, R48430, R50610 or R72127)
John Deere TRACTOR : 3020 (After ESN # 122999 - Block # R40700, R47520, R48430, R50610 or R72127)

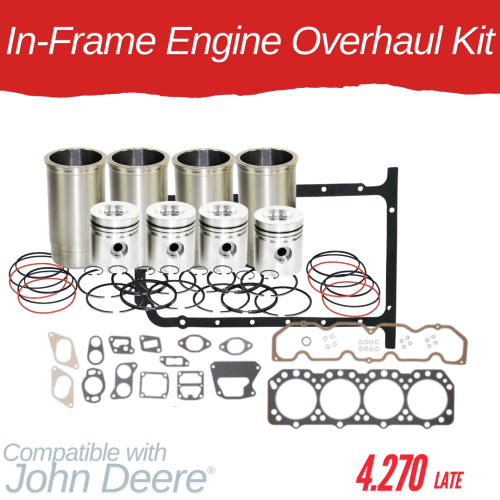

Included in this Kit :
- 4 x Piston, Rings, Liner Kit (1.50" or 38mm Wrist Pin Diameter)
- 1 x Connecting Rod Bearing Set - STD
- 8 x Connecting Rod Bolt
- 1 x Top Gasket Set
- 1 x Oil Pan Gasket
Kit Weight : 69 lbs
Pictures are GENERIC
Engine Specifications :
* 4 Cyl. - Diesel - Natural Aspiration
* Bore : 4.25" (108mm)
* Wrist Pin Diameter : 1.50" (38mm)
* Block Casting # R40700, R47520, R48430, R50610 or R72127
* THERE IS HIGH COMPRESSION UPGRADE KIT AVAILABLE FOR EASIER STARTING - PLEASE ENQUIRE *
*** PLEASE BE ASVISED this kit comes with standard bearings unless you advise us you require another size ***
| Applications | |
| Agricultural Tractor Models | 3020 |
| Industrial Tractor Models | 500C, 510, JD500A, JD500B |
