INFRAME ENGINE OVERHAUL KIT FOR JOHN DEERE 4.202 EARLY - 710 2020 2510 400 440 450
Product Code: CTPD JD4.202E-IF
Select your options below to see availability
This is a Brand New Premium Quality In-Frame Engine Overhaul Kit. It comes with a Full Manufacturers Warranty. It is for rebuilding the EARLY (O-Rings on Liner) original John Deere 4.202 Diesel (300 Series) Engine in the following equipment. Please check Engine Serial Numbers Below :
John Deere INDUSTRIAL WHEEL TRACTOR : 400 (Engine S/N Below : 158257)
John Deere SKIDDER : 440 (Engine S/N Below : 158257)
John Deere CRAWLER : 450 (Engine S/N Below : 158257)
John Deere FORKLIFT : 480 (Engine S/N Below : 158257)
John Deere TRACTOR : 710 (Engine S/N Below : 158257)
John Deere TRACTOR : 2020 (Engine S/N Below : 158257)
John Deere TRACTOR : 2510 (Engine S/N Below : 158257)
John Deere WINDROWER : 880 (Engine S/N Below : 158257)

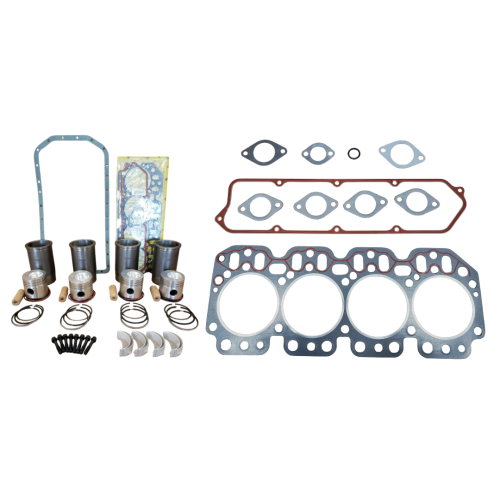

Included in this Kit :
- 4 x Piston, Rings, Liner Kit (O-Rings on Liner)
- 1 x Connecting Rod Bearing Set
- 8 x Connecting Rod Bolt (R74194 Bolt used w/ Rod Casting # T20007, R80033 Bolt used w/ Rod Casting # R81410)
- 1 x Top Gasket Set
- 1 x Oil Pan Gasket Set
Weight : 48 lbs
Engine Specifications :
* 4 Cyl. - Diesel
* Bore : 3.86" (98mm) ** VERIFY THIS - If Replacement Block was used - BORE Diameter will be LARGER
* Wrist Pin Diameter : 1.185" (30mm)
* O-Ring Seal are on the Liner
* Block Casting Number : T23406, T24961, T26933
* Connecting Rod Casting Number : T20007 & R81410
| Applications | |
| Agricultural Tractor Models | 710, 880, 2020, 2510 |
| Industrial Tractor Models | 400, 440, 450, 480 |
| OEM Reference | JD4.202E |
