CUMMINS 4BT 3.9 NON-EMISSION TURBO MAJOR ENGINE OVERHAUL KIT - 5120 580K 450C
Product Code: CTPD CU4BT3.9TNE-M
Select your options below to see availability
This is a Brand New Premium Quality Major Engine Overhaul Kit. It comes with a Full Manufacturers Warranty. It is for rebuilding the original Cummins 4BT 3.9 NON-EMISSION Turbo Diesel Engine. Please check Engine CPL Number and provide Engine Serial Number to Verify Proper Parts are Supplied :
Cummins CPL #'s : 690, 727, 730, 762, 763, 817, 857, 858, 971, 1201, 1202, 1268, 1277, 1287, 1508, 1631, 1659, 2021, 2340, 2414
Rebuild Kit for Below Equipment :
Case BACKHOE : 570LXT
Case BACKHOE : 580K
Case BACKHOE : 580L
Case BACKHOE : 580SE
Case BACKHOE : 580SL
Case BACKHOE : 590 TURBO CK
Case BACKHOE : 590SL
Case CRAWLER : 450C
Case CRAWLER : 455C
Case CRAWLER : 550
Case CRAWLER : 550E
Case CRAWLER : 550G (Up to Equipment Serial Number : JJG0255793)
Case CRAWLER : 650
Case CRAWLER : 650G (Up to Equipment Serial Number : JJG0216448)
Case EXCAVATOR : 688
Case EXCAVATOR : 9010
Case WHEEL LOADER : W11B
Case SKID STEER : 90XT (Up to Equipment Serial Number : JAF0245224)
Case SKID STEER : 95XT (Up to Equipment Serial Number : JAF0237963)
Case TRENCHER : 860
Case-IH TRACTOR : 5120
Case-IH TRACTOR : 5220
Case-IH WINDROWER : 8840
Cummins POWER UNIT : 4390T
White TRACTOR : 80 American

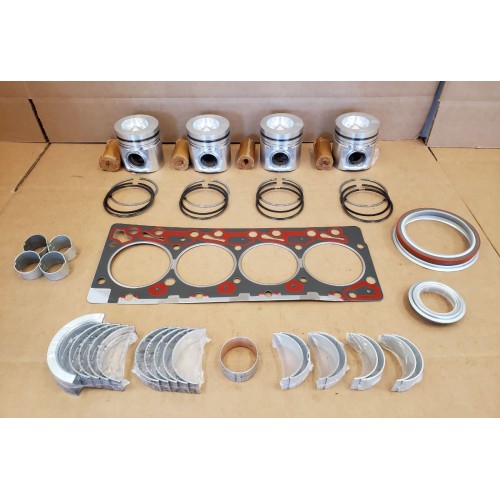

Included in this Kit :
- 4 x Piston and Rings Kit
- 1 x Main Bearing Set w/ Thrust Washer Set
- 1 x Connecting Rod Bearing Set
- 4 x Connecting Rod Bushing
- 1 x Front Engine Seal
- 1 x Rear Engine Seal

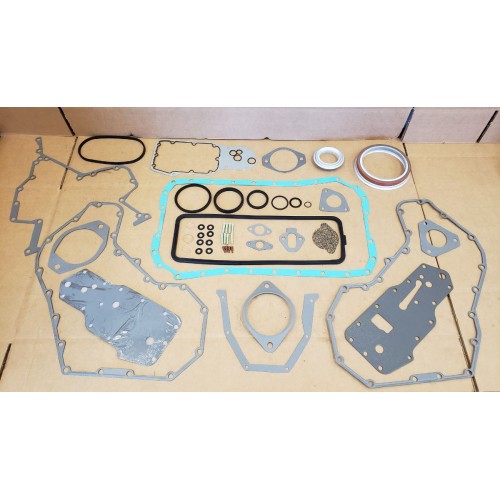

- 1 x Top Gasket Set
- 1 x Bottom Gasket Set
- 1 x Camshaft Bushing
Weight : 30 lbs
Pictures are GENERIC
Engine Specifications :
* 4 Cyl. - Diesel - Turbo
* Bore : 4.0165"
* 239 Cubic Inch
* Piston Marked : 7163
| Applications | |
| Agricultural Tractor Models | 80, 5120, 5220, 8840 |
| Engine Models | 4390T |
| Industrial Tractor Models | 570LXT, 580K, 580L, 580SE, 580SL, 590CK Turbo, 590SL, 450C, 455C, 550, 550E, 550G, 650, 650G, 688, 9010, W11B, 90XT, 95XT, 860 |
| OEM Reference | CU4BT3.9TNE-M |
